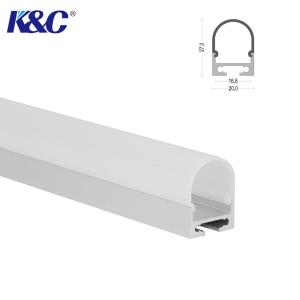

Led Aluminum Channel Profile For LED Strip Lighting With PC PMMA Diffuser Cover
Surface-mounted high-quality anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 16m width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as PMMA cover, mounting clips, and end caps which make it look professional and modern.
Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
Assembly
- Mounted to the surface with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 16mm width
About this item
Ultra thin U-shape LED aluminum profile,rigid construction of anodized aluminum without flange for both recessed and surface mount LED lighting projects,perfect protection for LED strips.
16mm inner width to accommodate all kinds of 1-12mm wide LED strip lights and waterproof strips.
Milky white cover provide a well diffused light that is comparable to neon effect, ideal for decorative and accent lighting, Very suitable for recessed/surface mounting to tie-in furniture, under cabinet,shelves,balconies, drywall, living room, hotel, wooden partitions, shopping mall etc.
Aircraft grade anodized silver aluminum material, better heat dissipation, providing great protect for delicate LED strip lights.
Package Included: 1PCS aluminum channel, 1PCS cover, 2pcs End Caps and 2pcs Mounting Clips. (Note: LED strip light is NOT included ).
Service
1. Free sample;
2. OEM available;
3. Custom-made request;
4. New design solution suggestion
Our advantages:
1. 100% factory price
2. 10 engineers and own tooling house, strong at OEM & ODM
3. A lot of stocks, fast delivery available
4. More than 200 led aluminum profile designs
5. Support both small or big orders
Main Specifications
| Model No.: | K31 |
| Item Type: | Surface LED Profile |
| Dimensions: | W20.0*H27.0 mm |
| Standard length: | 2m/pcs |
| Suitable for led strip: | PCB width up to 16mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver/ Black/ White |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |

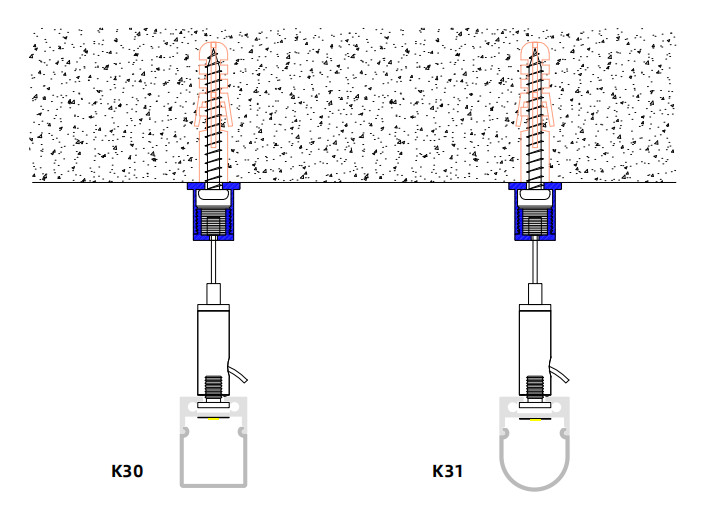

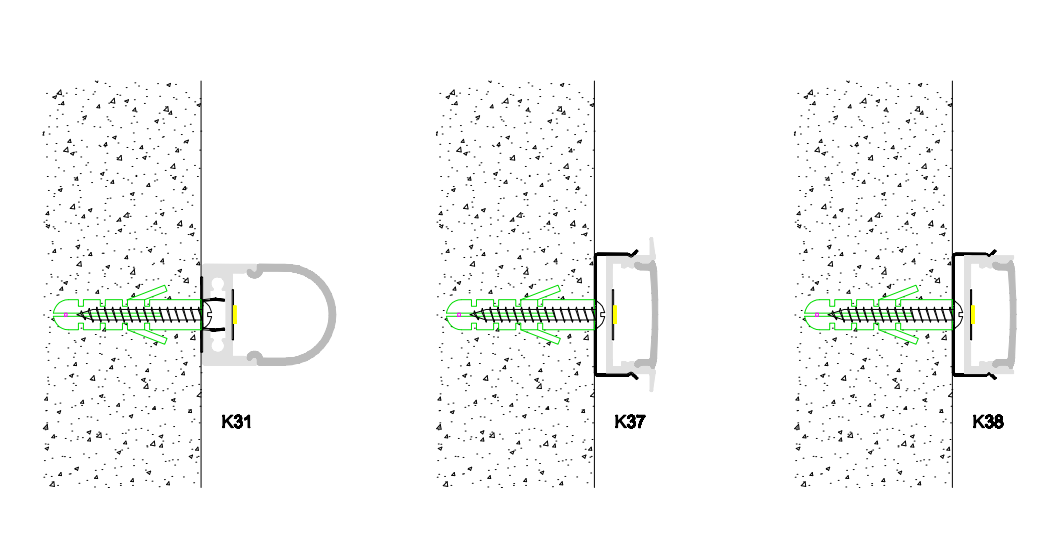

Installation

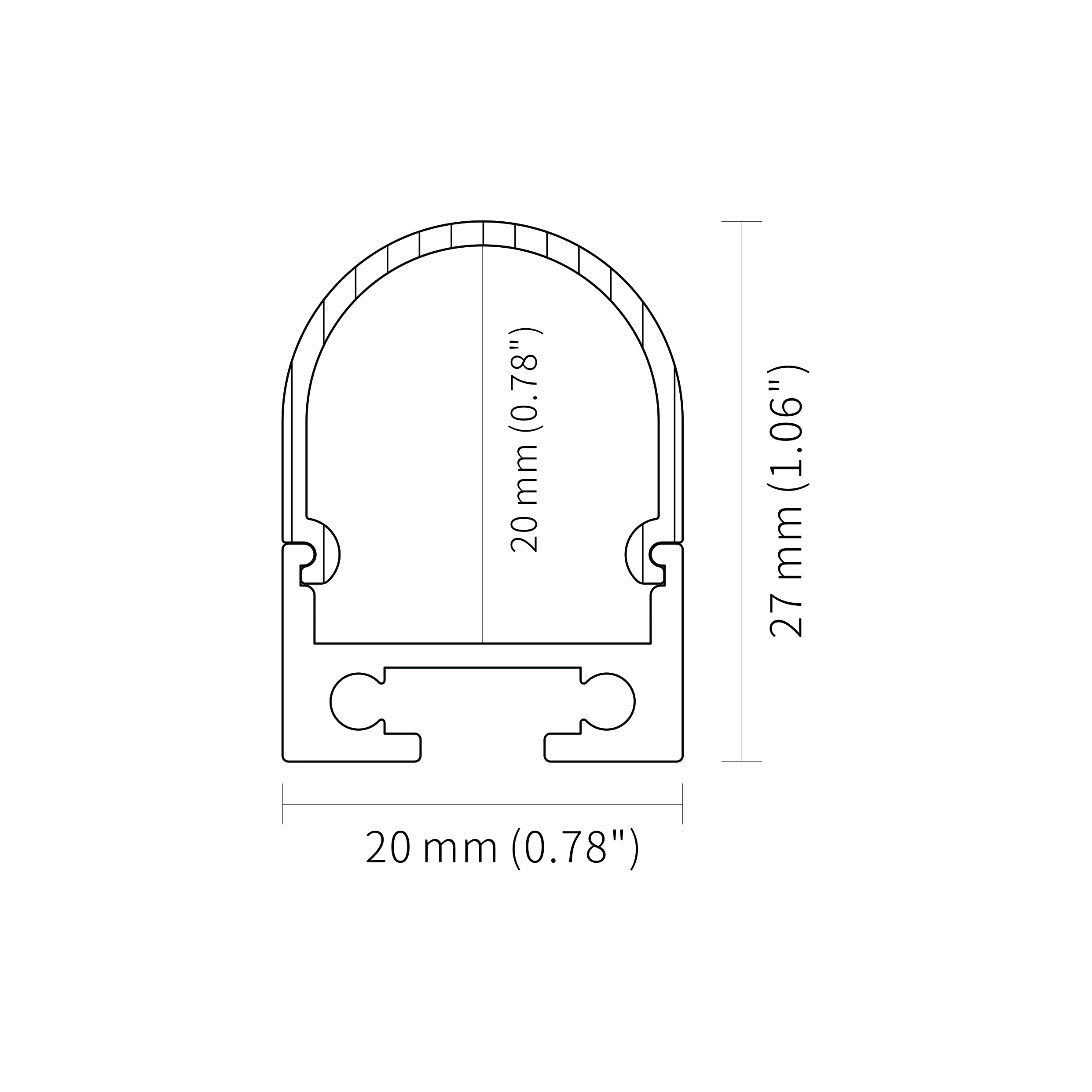

Drawing:
Application
FAQ:
Q: How to cut the led aluminum profile?
A: Led aluminum profile is very strong, it cannot cut by scissor-like led strip light. It has to use a saw to cut. And we suggest using a precision sawing machine then can cut the aluminum profile in the accurate size.
Q: How many kinds of led aluminum profile cover?
A: We have has 2 kinds covers, One is PMMA cover (Opal, semi-clear, clear) The other one is PC cover ( Frosted, clear).
Q: How many colors of led aluminum profile available? Collapse
A: We can offer 3 kind colors of led aluminum profile. White, black, and sliver.
Q: How to use led aluminum profile for cabinet light?
A: 1. Fixed the led strip light into the led aluminum profile.
2. Fixed the led aluminum profile under the cabinet.
3. Connect the power supplier with led strip light.
Q: How to make a led aluminum profile connector?
A: We can offer some kinds of led aluminum profile connectors to you. Of course, some clients can use a soldering machine to connect the led aluminum profile.
